UTV
DECKS.
— FOUR CONFIGURATIONS
PICK YOUR
BED. PICK
YOUR UTV.
Short bed, universal, long bed, flat deck. Stock width or Max — fifteen more inches of wheelbase and eight more inches of width. Every config ships powder-coated black with the same integrated roof rack, the same winch point, and the same uncompromising 11′ folding ramps. Have a custom rig? Call us — we've spec'd everything.

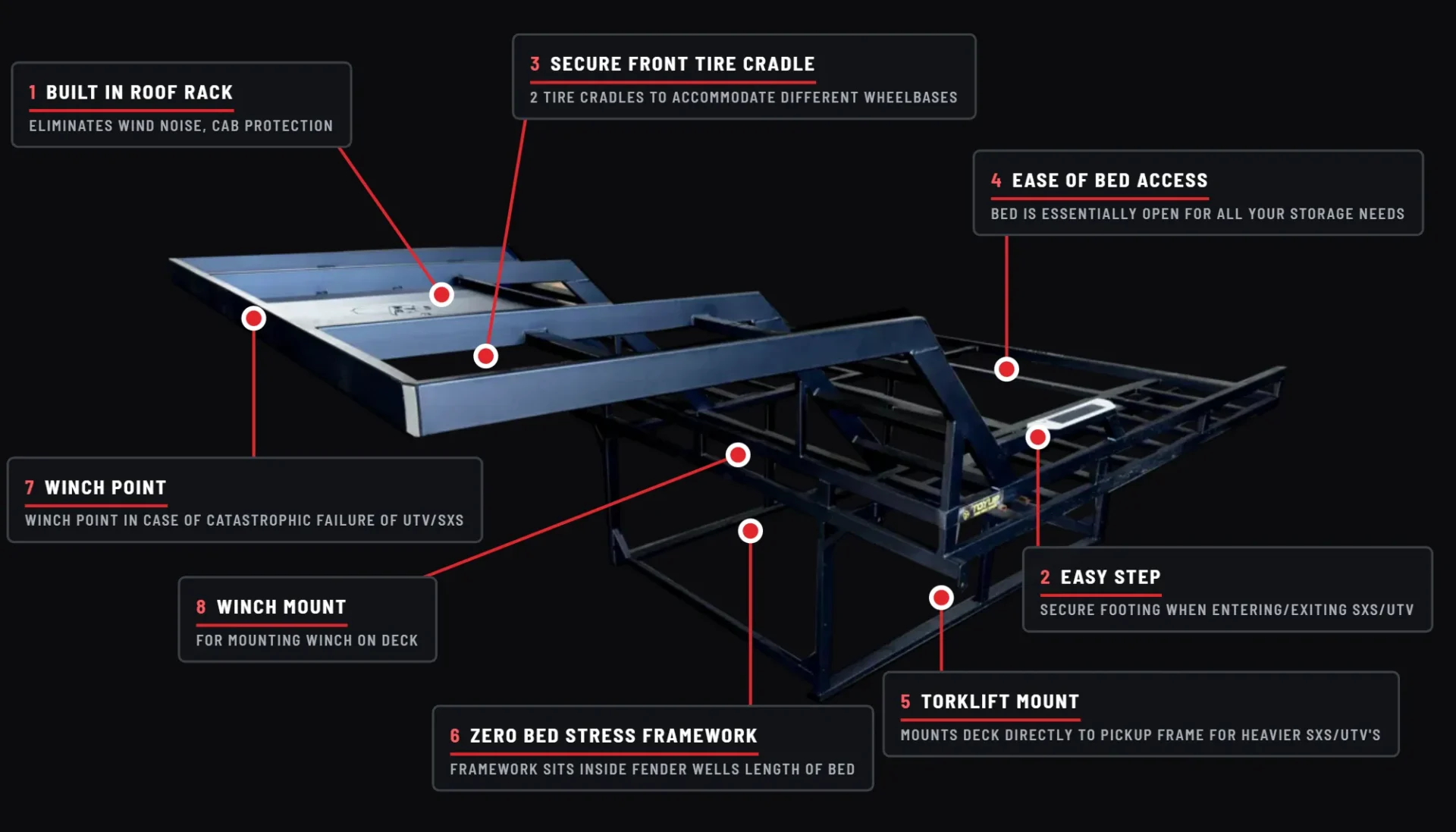

UTV/SXS Deck

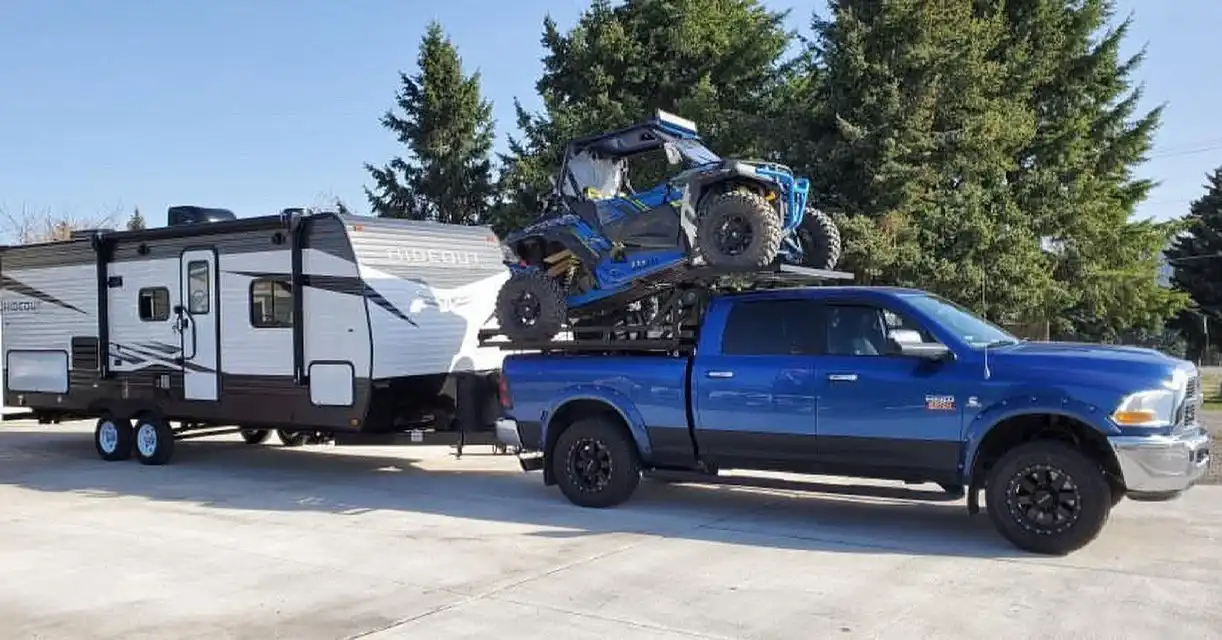

CONFIG · 01
SHORT BED
CABOVER.
Fits beds
5′ 5″ & 6′ 5″
Width
74″ or 82″
Length
7′
Max wheelbase
110″
Deck weight
300 lb

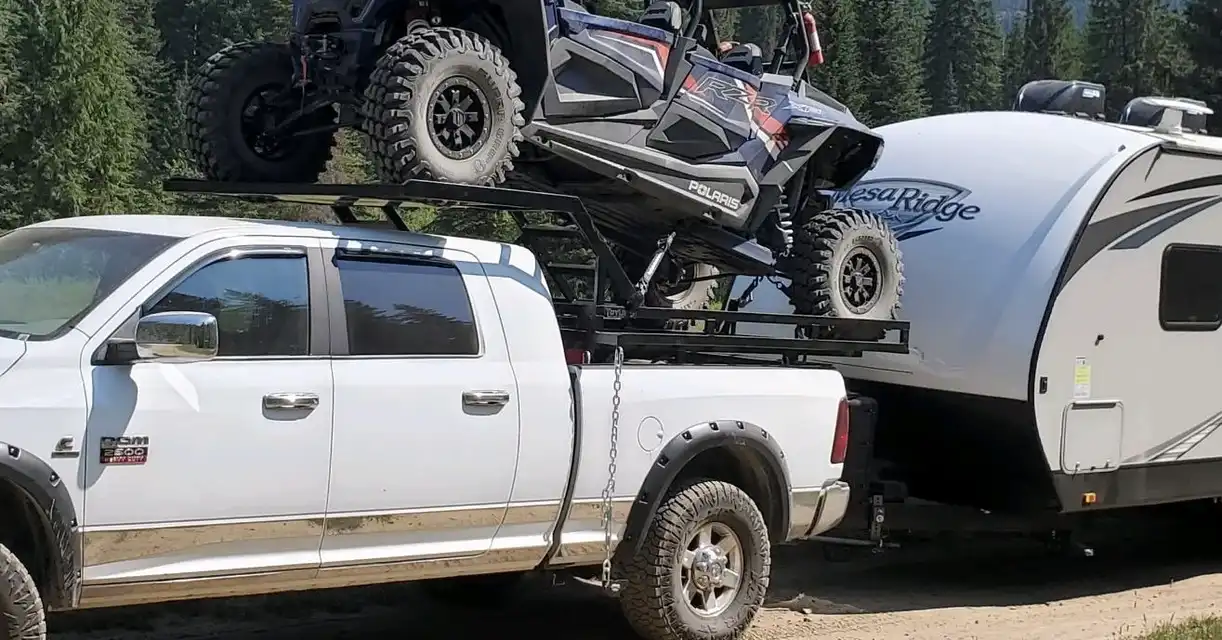

CONFIG · 02
UNIVERSAL
CABOVER.
Fits beds
6′ 5″ & 8′
Width
74″ or 82″
Length
8′
Max wheelbase
130″
Deck weight
310 lb

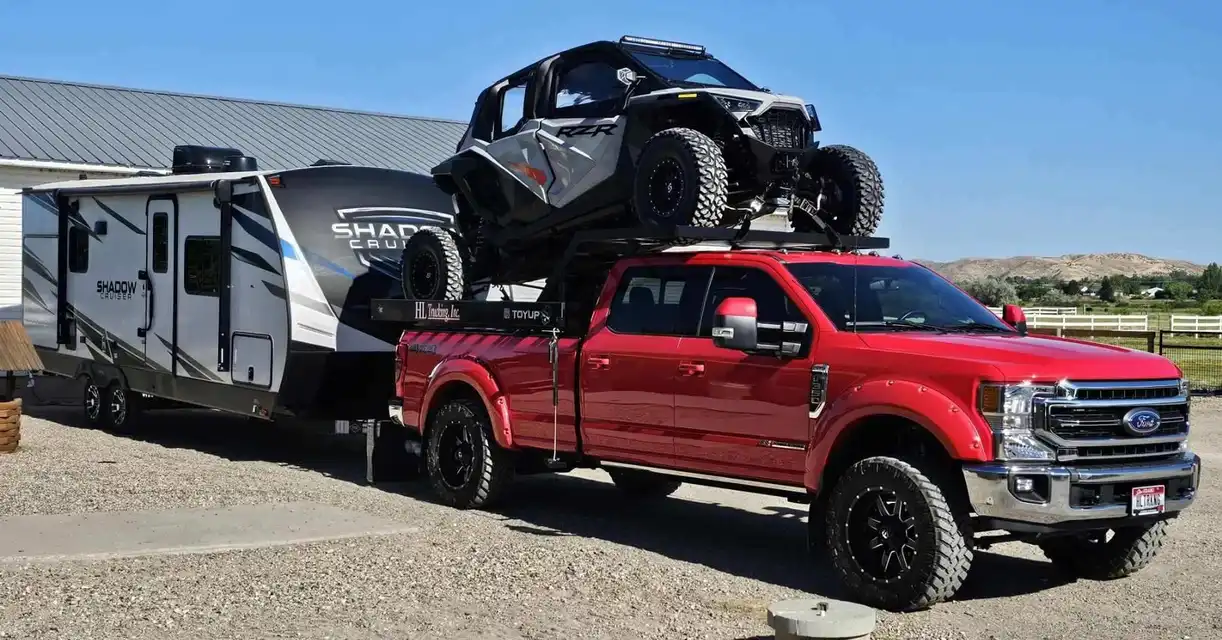

CONFIG · 03
LONG BED
CABOVER.
Fits beds
8′
Width
74″ or 82″
Length
9′
Max wheelbase
140″
Deck weight
320 lb

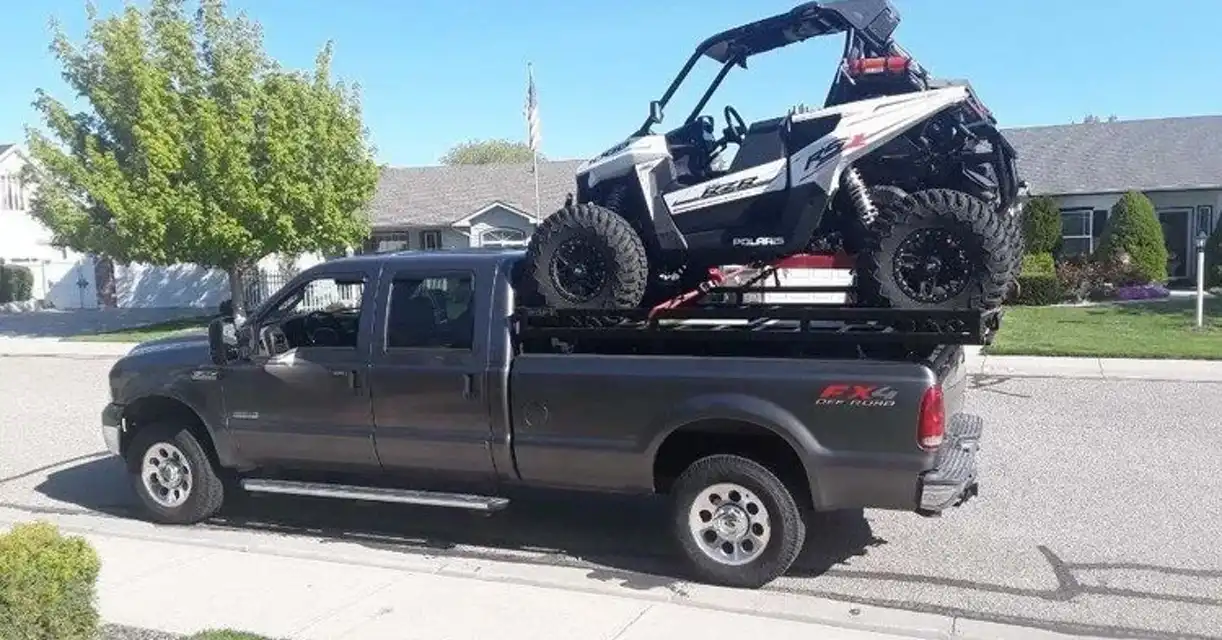

CONFIG · 04
FLAT DECK.
Fits beds
8′
Width
74″
Length
9′
Max wheelbase
90″
Deck weight
275 lb
— BUILD IT YOUR WAY
OPTIONS
& UPGRADES.
No deck leaves the shop without the basics dialed in. From there, build it as wild as you want — the Max package alone adds 8″ of width and 15″ of wheelbase to swallow a 64-wide RZR Pro R like it's nothing.
— UPGRADE A
MAX PACKAGE
+15″ wheelbase. +8″ width. The single upgrade that takes a stock cabover from "fits most UTVs" to "fits anything you can buy."
— UPGRADE B
CUSTOM WRAP
Side-panel option with custom wrap in your colors, logos, sponsor graphics. Roll into the truck stop looking like you own the place.
— UPGRADE C
WINCH MOUNT
Integrated winch point welded into the deck. For peace of mind on the catastrophic days — not for daily driving on. Push, don't winch.
— UPGRADE D
ZINC PRIMER
A second pass of marine-grade zinc primer under the powder coat. Built for salt-belt winters and Idaho mud seasons.
— UPGRADE E
LED MARKERS
Marker and work lighting integrated into the deck. DOT-compliant. Bright enough to load at 4 AM. Subtle enough not to look like a Christmas tree.
— UPGRADE F
STRAP KITS
Turnbuckle kit to lock the deck to the bed. PowerTye ratchet straps to lock the UTV to the deck. The bolts, the rubber, the hooks — all of it.

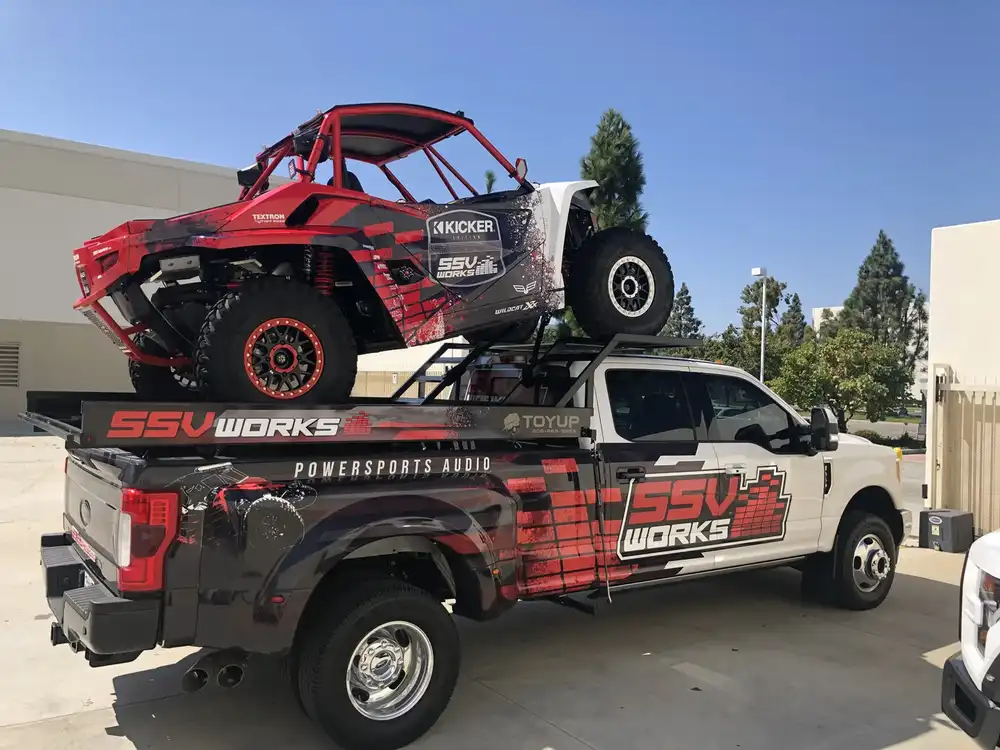

— THE WRAP OPTION
PLAIN OR
WRAPPED.
The optional side-panel wrap turns your deck into rolling brand real estate. Stock decks ship without side panels — clean, industrial, business-end. Add the wrap option to fully sheet the sides and put your name on it.
WITH WRAP

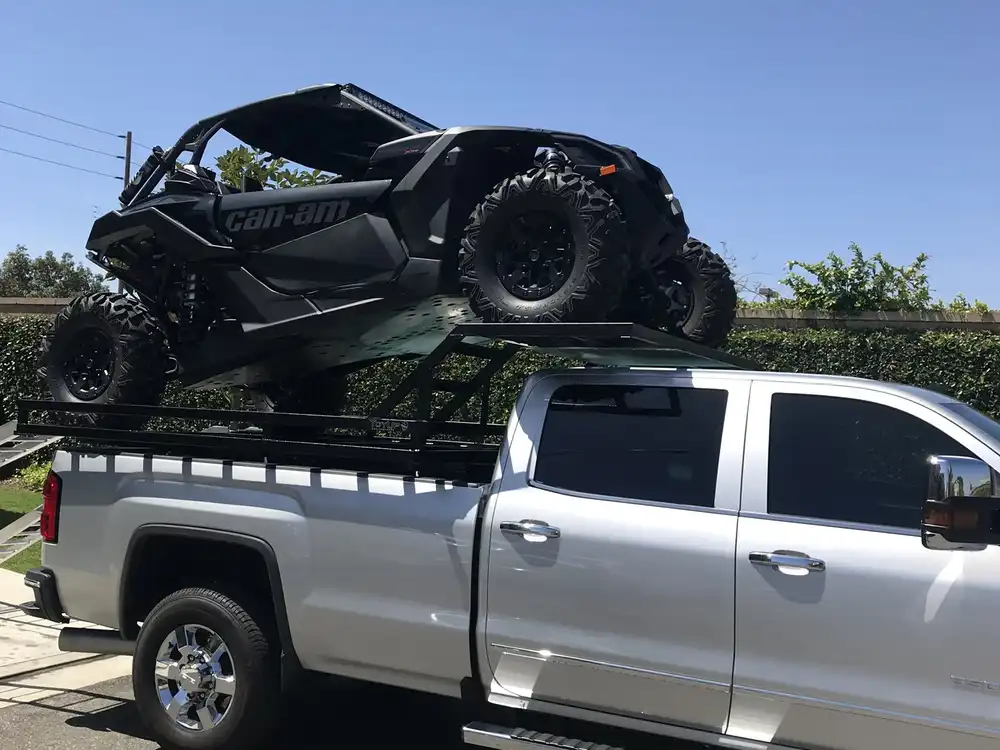

STOCK - NO PANELS
— RAMP TECH
11 FEET.
3500 LBS.
ZERO DRAMA.
Our HD folding ramps are 6061-T6 aluminum, 15″ wide with 1″ crossmembers, rated for 3,500 lb at a 26° angle. They fold flat, lift one-handed and absolutely refuse to flex when you're driving a 1,900 lb side-by-side onto them.
RAMP SPECS
Total length
11′
Width
15″
Material
6061-T6 aluminum
Crossmembers
1″
Weight
45 lb
Load rating
3,500 lb @ 26°

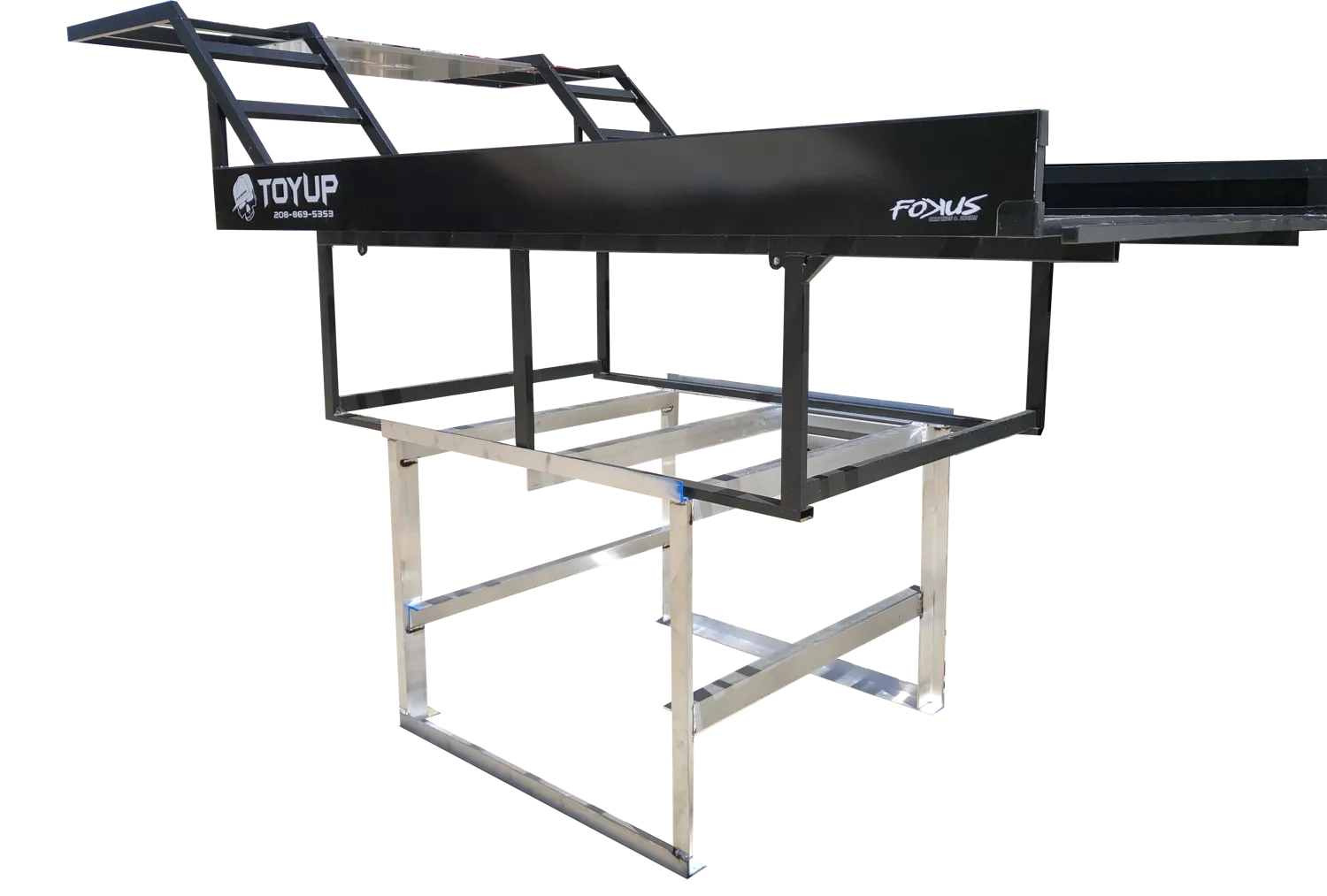

— ADD-ON
STORAGE STAND
Off-season? Drop the deck on its custom welded storage stand. Stays out of the way, stays off the floor, stays ready for the next season.

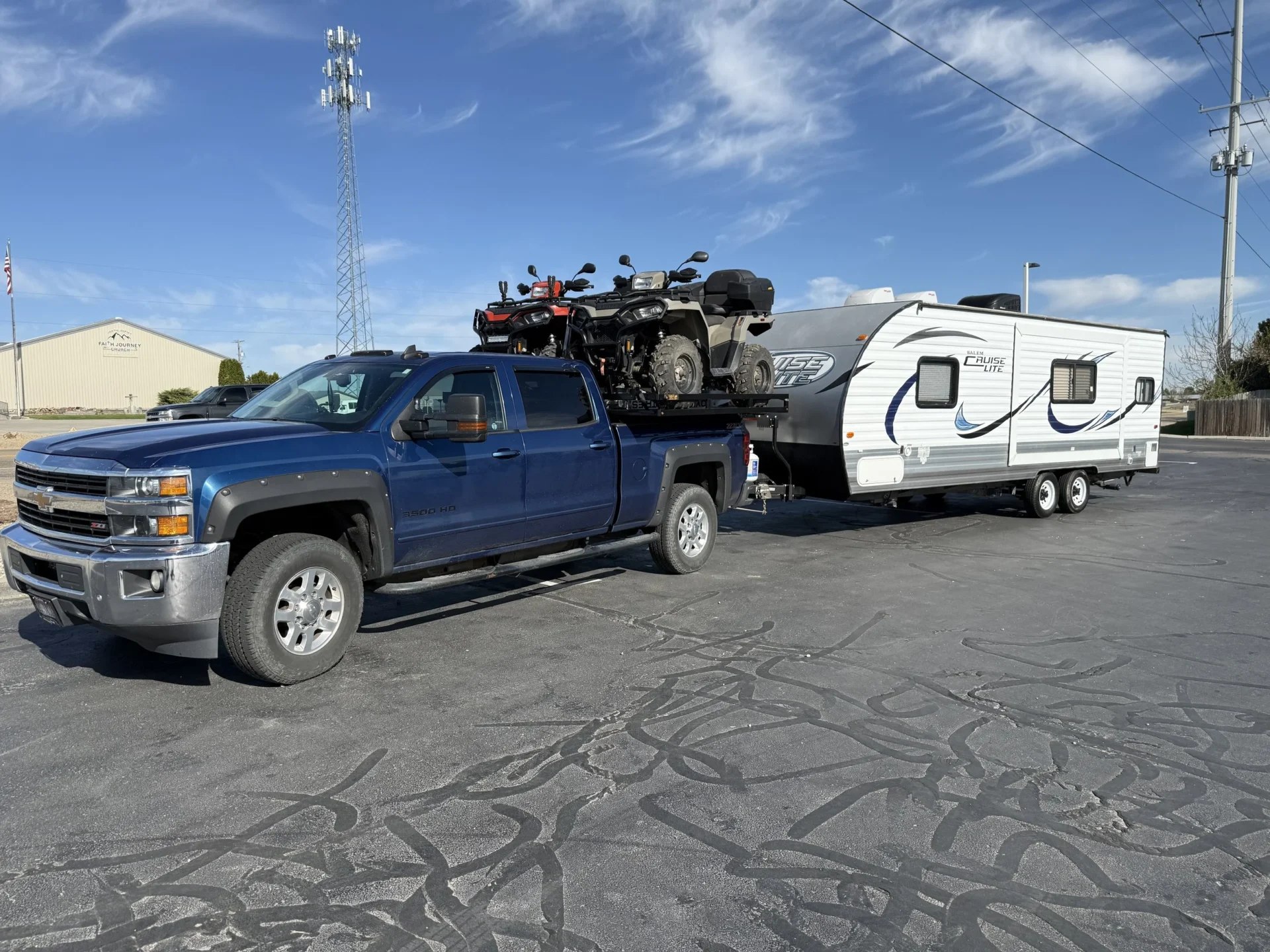

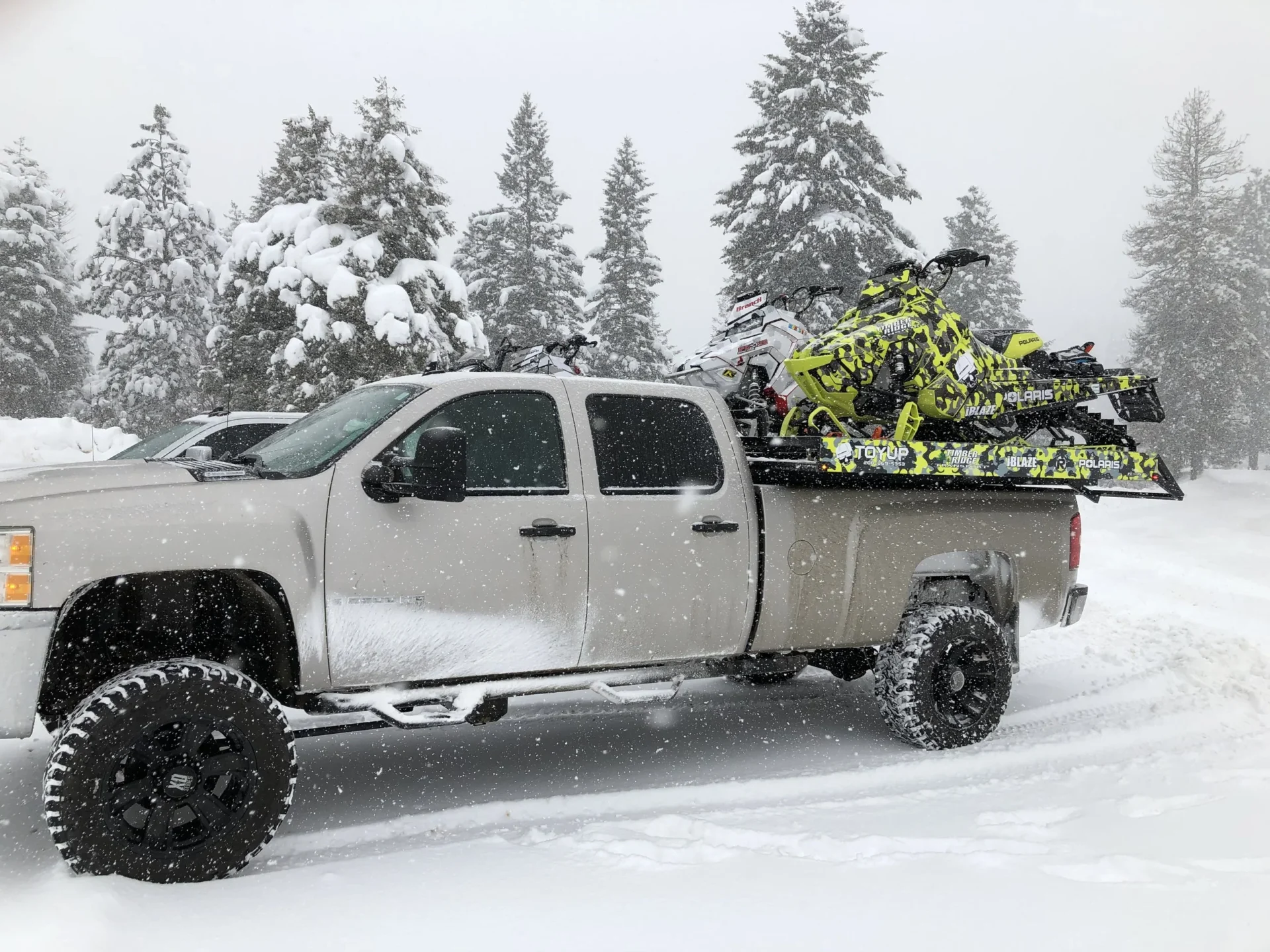

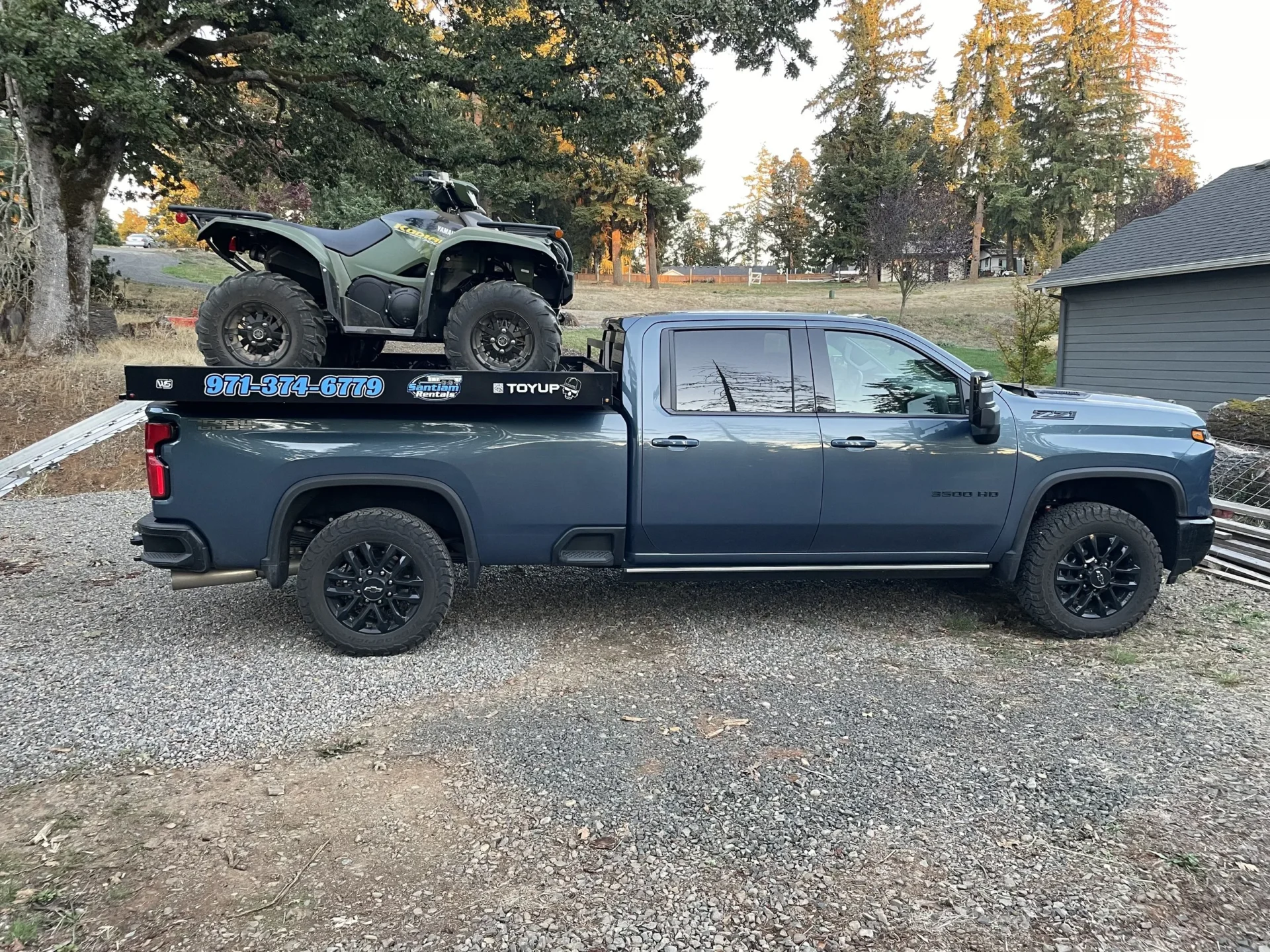

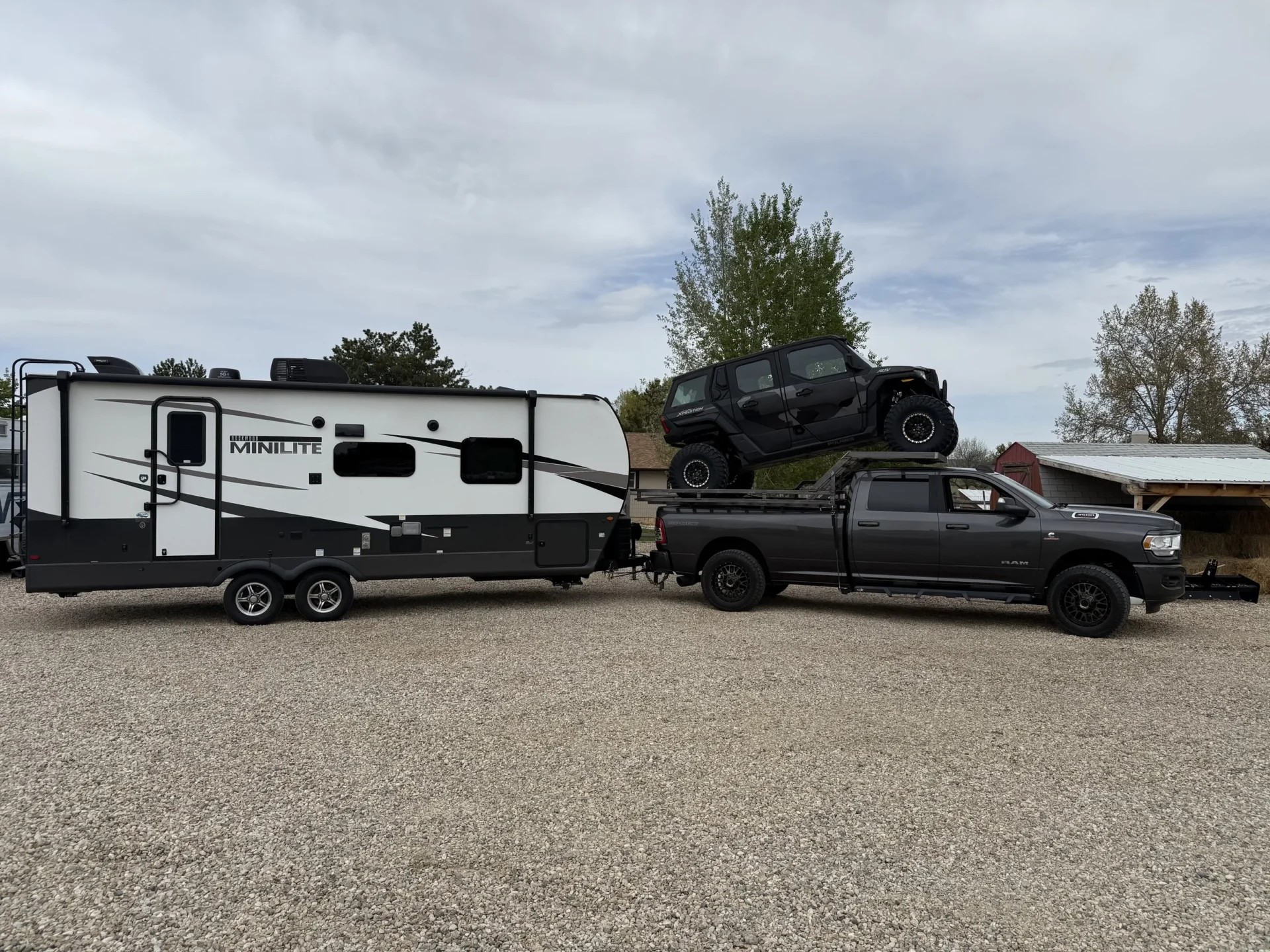

— UTV DECK GALLERY
